Pruebas a Equipos Eléctricos

Features Pruebas a Equipos Eléctricos

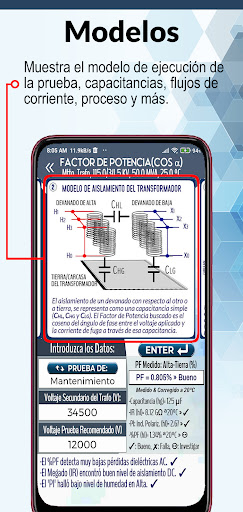

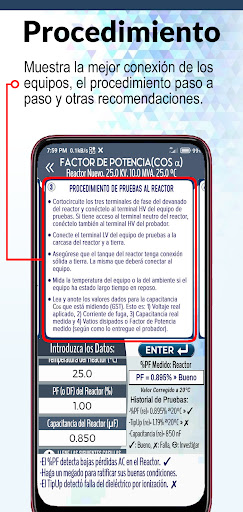

If you do acceptance or maintenance tests on a transformer, motor, generator, bars, circuit breakers, cable, disconnector, insulator, lightning rod and other power equipment, this App is your best option to know the most important details of the execution and interpretation of the results of your test, such as the most recommended equipment to perform it, the most secure connection of the equipment with the sample, the selection of the most appropriate tests to perform and the order in which they should be executed on each type of equipment, the model physical or electromagnetic flow of the sample under test, the magnetic and current flows during the test, the step-by-step procedure to perform the test, the data to be recorded and the optimal time to record them, the correction of the results for temperature, humidity and applied voltage, the preliminary diagnosis of the real conditions of the equipment under test, which is issued based on the results obtained in all the tests carried out to the same team and registered in the App and using the statistical trend of results to similar teams distributed in global databases.
Therefore, this App is a good technical assistant to guide both the executors in the process of carrying out and taking samples, as well as the analysts in their final diagnosis process and issuing recommendations on the subsequent actions that must be taken with the equipment.
under test.The App distinguishes between new equipment acceptance tests (FAT) and routine maintenance tests for equipment in service, thus revealing the most appropriate picture of the actual electrical, dielectric and magnetic conditions of the power equipment under test, so that the technician can decide whether or not to receive the equipment from the factory, in the case of acceptance tests, or whether to take the equipment out for major maintenance, in the case of maintenance tests.The App covers the most recommended tests by American and European standards; ANSI, IEEE and IEC, such as Megado, Polarization Index (PI), Dielectric Absorption Ratio (DAR), Dissipation Factor or Power Factor of the dielectric, Tip Up of the Power Factor (or Capacitance), Hot Rings ( Hot Collar), Dielectric Discharge, Voltage Step, Excitation Current of transformers and High Potential (Hi Pot) in alternating or direct current, giving additional recommendations on how to take advantage of the charge or discharge of the dielectric system of the sample, to optimize the time between tests and improve results for the most accurate diagnosis of sample conditions.The App stores the results of each test to a specific device and displays them in the Test History column, while the user performs another test.
The objective is to highlight and point out the most consistent weaknesses found in the equipment under test, so that the user can take preventive actions so as not to further affect the sample, to go deeper into their individual process of analyzing the conditions of the equipment or to reveal the characteristics of an eventual hidden or obvious failure that has begun to be detected or to outline the possible root causes of that potential failure.
